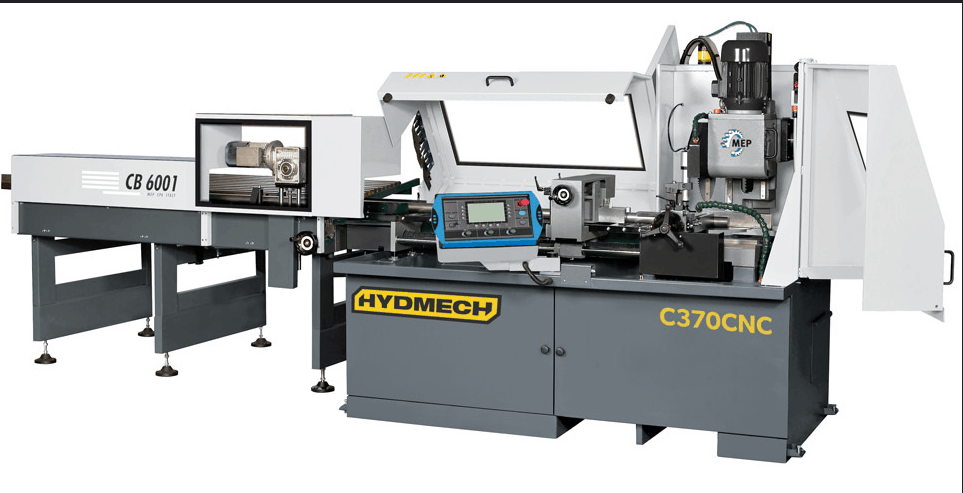

HYDMECH C370CNC Vertical Column Cold Saw
The C370CNC is an automatic cold saw that has a standard 40″ single stroke, multi-indexing material feed system. The control panel includes emergency stop, programming console, digital display for machine diagnostics, as well as cutting parameters: blade speed, cut time, cut quantity, and offers storage of up to 32 jobs.
Standard features:
- Automatic operation with semi-automatic mode
- Flood coolant system with electrical coolant pump
- Variable speed drive
- 60° left & 45° right miters
- Vertical pneumatic vise
- Extended jaws allowing for short remnant
HYDMECH C370CNC Vertical Column Cold Saw
| Technical Data | |
| Saw Blade Diameter |
13.78 to 14-1/2 in |
| Power | 7.5 hp |
| Table Height | 38 in |
| Weight | 2350 lb |
| Dimensions (L x W x H) | 97 x 69 x 75 in |
| Cutting Capacities | |
| Round Hollow 90° | 4-3/4 in |
| Round Hollow 45° | 4-1/2 in |
| Round Hollow 60° Left | 4-1/2 in |
| Square Hollow 90° | 4-1/4 in |
| Square Hollow 45° | 4 in |
| Square Hollow 60° Left | 3-1/2 in |
| Rectangular Hollow 90° | 7 x 4 in |
| Rectangular Hollow 45° | 4-3/4 x 4 in |
| Rectangular Hollow 60° Left | 3-1/2 x 3-1/2 in |
| Round Solid 90° | 4-3/4 in |
| Round Solid 45° | 2-3/4 in |
| Round Solid 60° Left | 2 in |
| Square Solid 90° | 4-1/4 in |
| Square Solid 45° | 2-3/4 in |
| Square Solid 60° Left | 2 in |
| Rectangular Solid 90° | 7 x 4 in |
| Rectangular Solid 45° | 2-3/4 x 4 in |
| Rectangular Solid 60° Left | 2 x 4 in |
