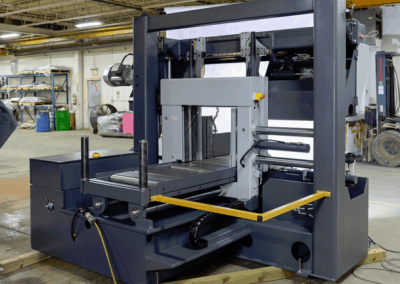

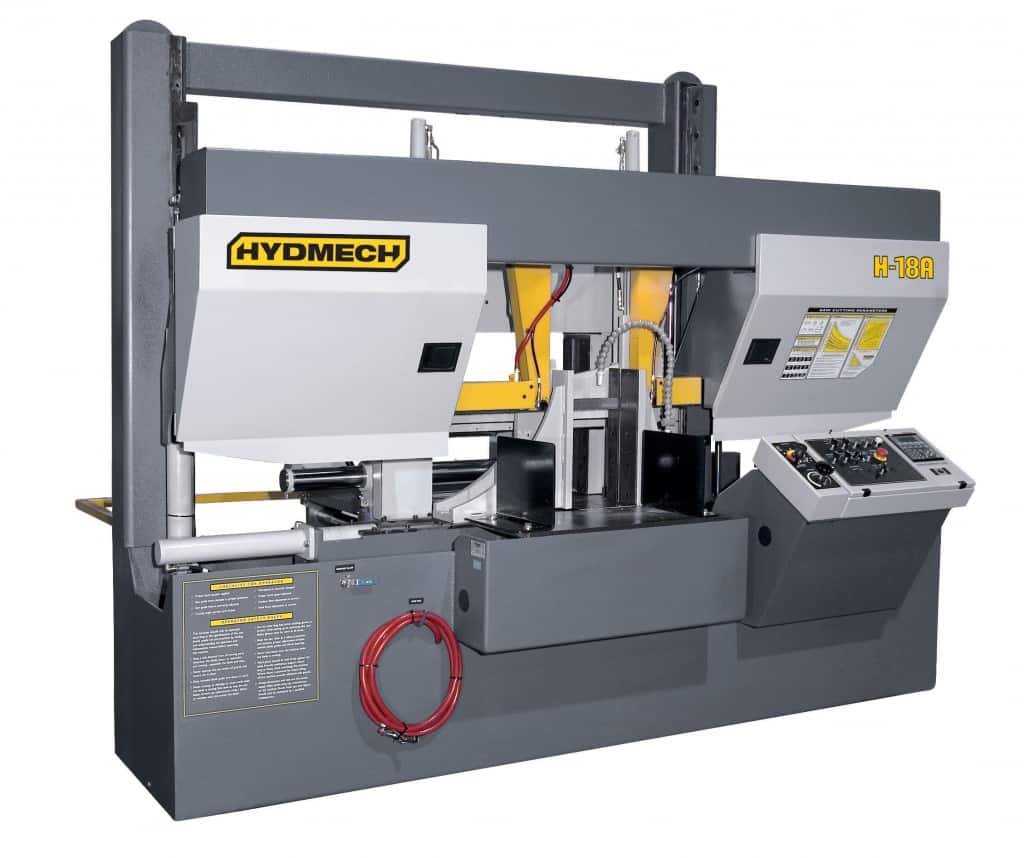

HYDMECH H-18A Horizontal Band Saw
![](http://www.smscolumbus.com/wp-content/uploads/2019/02/90011dea682c2945c9f1aceabe679351.jpeg)
The H-18A is an automatic horizontal band saw providing fast, accurate 90° metal cutting with a short remnant length for medium to heavy-duty applications. The PLC control is programmable for up to 99 jobs with 5 in queue. This machine is equipped with a high resolution feed rate valve allowing for constant feed rate when cutting special alloys.
Features:
- One piece design – no alignment necessary
- Split front vise
- Hydraulic blade tensioning
- Hydraulic carbide guide tensioning
- Hardened, replaceable wear plates
HYDMECH H-18A Horizontal Band Saw
Technical Data | |
Saw Blade Size |
19′ 2″ x 1-1/2″ |
Power | 10 hp |
Blade Speed |
50 to 350 sfm |
Single Stroke Length | 34 in |
Weight | 8500 lb |
Dimensions (L x W x H) | 127 x 88 x 92 in |
Cutting Capacities | |
Rectangular 90° | 18 x 18 in |
Round 90° | 18 in |
