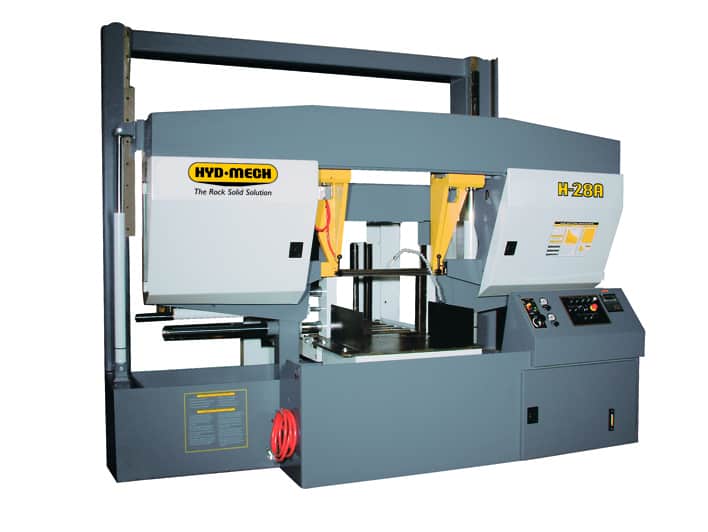

HYDMECH H-28A Horizontal Band Saw
The H-28A is a large capacity automatic dual post horizontal band saw for heavy-duty applications. The direct down feed system provides easy adjustment of both head feed rate and cutting pressure. The PLC control is programmable for up to 99 jobs with 5 in queue.
Features:
- Variable frequency drive motor
- Hydraulic carbide guide tensionsing
- Hydraulic band tensioning
- Split front vise
- Flood coolant
- Work light
HYDMECH H-28A Horizontal Band Saw
| Technical Data | |
| Saw Blade Size |
25′ x 2″ |
| Power | 10 hp |
| Blade Speed |
40 to 300 sfm |
| Single Stroke Length | 32 in |
| Weight | 18000 lb |
| Dimensions (L x W x H) | 92 x 16 x 120 in |
| Cutting Capacities | |
| Rectangular 90° | 28 x 28 in |
| Round 90° | 28 in |
| Square 90° | 28 in |
