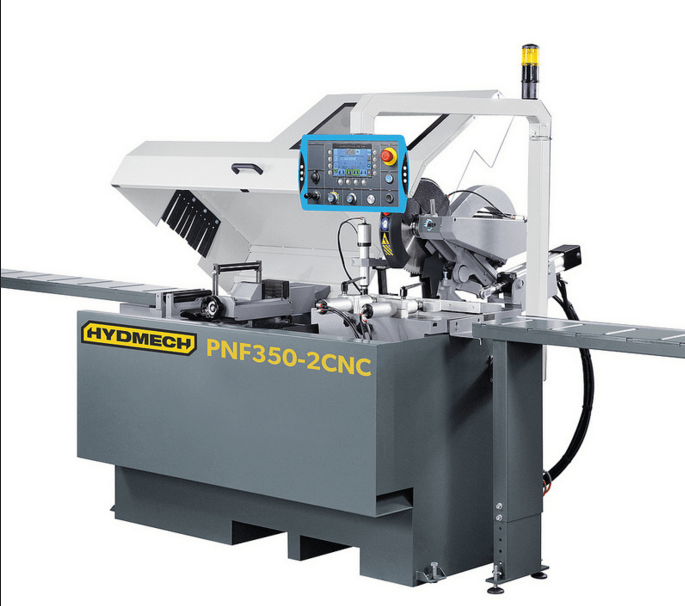

HYDMECH PNF350-2CNC Pivot Arm Cold Saw
The PNF350-2CNC is an automatic, programmable pivot arm cold saw used for cutting non-ferrous material. The control panel is mounted on an articulating arm, with protected membrane buttons. This includes emergency stop, set or view machine operations such as saw stroke limits and speed, cutting programs, blade speed, cycle time along with 40 different diagnostics and warnings. Stores up to 99 jobs.
Features:
- Rotating table on roller bearings
- 45° left & right miters
- Saw head can tilt 45° left for compound miters
- Two pneumatic operating vises
- Moveable aluminum jaws on vises
- Enclosed cutting area
HYDMECH PNF350-2CNC Pivot Arm Cold Saw
| Technical Data | |
| Saw Blade Diameter |
14 in |
| Power | 3.5/5 hp |
| Blade Speed |
1700/3400 rpm |
| Weight | 1267 lb |
| Dimensions (L x W x H) | 67 x 93 x 69 in |
| Cutting Capacities | |
| Round Hollow 90° | 4-3/4 in |
| Round Hollow 45° | 4-1/4 in |
| Round Hollow 45° Tilted Head | 2 in |
| Square Hollow 90° | 4 in |
|
Square Hollow 45° |
3-3/4 in |
| Square Hollow 45° Tilted Head | 2 in |
| Rectangular Hollow 90° | 7 x 2-3/4 in |
| Rectangular Hollow 45° | 5-1/3 x 2-1/2 in |
| Rectangular Hollow 45° Tilted Head | 5-1/3 x 1-1/3 in |
| Round Solid 90° | 3-1/2 in |
| Round Solid 45° | 3 in |
| Round Solid 45° Tilted Head | 2 in |
| Square Solid 90° | 3 in |
| Square Solid 45° | 2 in |
| Square Solid 45° Tilted Head | 2 in |
| Rectangular Solid 90° | 3 x 3 in |
| Rectangular Solid 45° | 2 x 3 in |
| Rectangular Solid 45° Tilted Head | 7 x 3/4 in |
