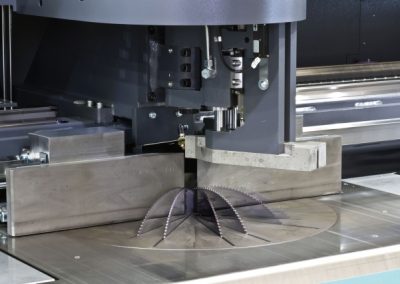

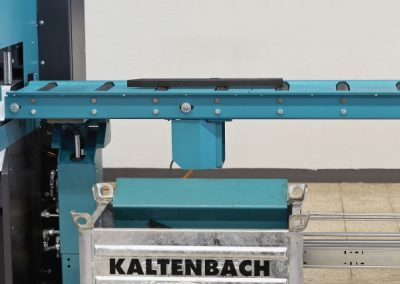

Kaltenbach KKS 463 NA Fully Automatic Universal Circular Saw

The KKS 463 NA is the fastest universal circular saw for metal with positioning speed reaching up to 60 meters per minute. It offers automatic processing of flat, angle and solid materials, tubes and special profiles. High cutting quality is achieved through workpiece clamping on both sides of the saw blade and infinitely variable adjustment of the saw-blade feed, as well as contactless saw blade return stroke. The special gripper design affords minimal end-piece lengths. Electronic cutting-height adjustment and rapid reverse motion of the saw blade provide short cutting and cycle times. Touch screen controls offer simple operation and programming.



Kaltenbach Logo

Kaltenbach KKS 463 NA Fully Automatic Universal Circular Saw

Technical Data
Saw Blade Diameter
18.1 in, 460 mm
Power

Standard: 7 hp
High Speed Option: 12.75 hp

Cutting Speed

Standard: 23 to 196 SFM

​High Speed: 50 to 395 SFM

Weight 10,800 lb
Dimensions (L x W x H) 95 x 43 x 70 in
Cutting Capacities
Round: 90°/45° 6 in
Square: 90° 5.5 in
Rectangular: 90° 9 x 4 in
Rectangular: 45° 8 x 4 in
